R-OADMs:
The Key to Upgrading the Newly Merged Networks

Updated: April 2005

Overview | TOC | TOF

$2495 - Print copy
$3495 - Single-user PDF*
$5495 - Unlimited-user PDF*


* print copy included with PDF
Overview:


Early 2005 has seen the telecommunications industry turned on its ear by the announcement of major acquistioins. These acquisitions, regardless of the final composition, will virtually eliminate the independent IXC industry. The merging of the RBOCs' metro and short-haul networks with the long-haul networks of the IXCs will be one of the main drivers of telecommunications infrastructure changes for the next few years. The emerging availability of R-OADMs is very good timing because the RBOC-IXC mergers of early 2005 will require a great deal of network consolidation, and R-OADMs will be key. The R-OADM device offers the promise of substantial savings in operations costs, and many operational benefits.

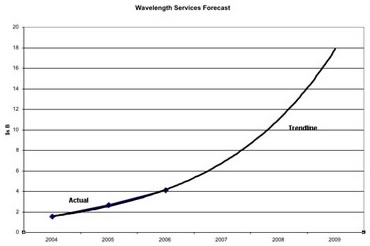

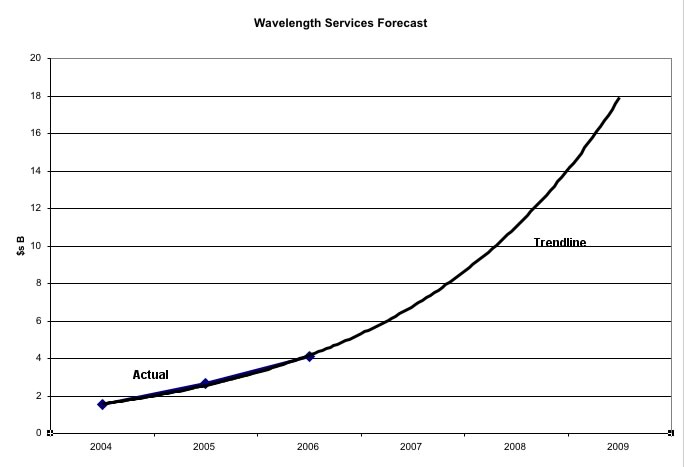

Click for larger image.

R-OADMs

R-OADMs are planned to be systems that will allow the very flexible, remote selection of wavelengths transiting a given intermediate node on a fiber network for drop and/or adding. They will allow access to any of the wavelengths going through a node for use of the data on the chosen wavelength and the possibility of adding to, or modifying, the data on that wavelength for transmitting it on to the next node(s).

A number of technologies are involved in the R-OADM. At this point even the final architecture is unclear. The report presents three different architectures, with an emphasis on two of these - the 'small switch' version and the 'broadcast' version. Technologies involved in each approach are described. As more vendors are coming to market the broadcast version of the architecture, seems to be predominant.

There are many applications for the R-OADM. The applications of various degree nodes ('two degree nodes' for example have two fiber routes, three degree have three, etc.), that are common in the network are depicted. As will be noted some of these applications will have particular use in merging the long-haul networks of the IXCs and the metro networks of the RBOCs.

The main market driver for R-OADMs is the desire to save operating expenses by the carriers. In addition, the forecast increase (by some) in wavelength services is going to greatly facilitate the deployment of networks based on R-OADMs.

This newest report from the Lightwave Series, "R-OADMs - The Key to Upgrading the Newly Merged Networks" is the definitive report on Reconfigurable Optical Add Drop Multiplexers (R-OADMs). These devices are finally going to answer all carriers' desires to be able to control optical domain networks with the same flexibility and ease, as they are familiar with in SONET oriented networks. R-OADMs will provide all of the capacity of wavelength engineering with the ease and familiarity of SONET! These devices will usher in the truly intelligent optical network era.

R-OADMs will be systems that allow the very flexible, remote selection of wavelengths transiting a given intermediate node on a fiber network for drop and/or adding.

  • They will allow access to any of the wavelengths going through a given node.
  • They will allow the use of the data on the chosen wavelength and possibly adding to or modifying the data on that wavelength for transmitting on to the next node(s).
  • All of this can be done without impacting the through wavelengths in any way.

Report Details

In many ways, the predecessor to this report (only a year ago) was a report about a device that didn't exist; whose technology was unselected; and whose market was very unclear. While a few of the smaller DWDM system vendors had a Reconfigurable Optical Add/Drop Multiplexer (R-OADM) offering, none of the major vendors (90%, or so, of the total market) had yet announced a product. Now a year later, every major system vendor has an R-OADM offering, and more are on the way.

This is an update of an earlier report on the same subject from IGI. The previous report was entitled "R-OADMs - Still with Us in 2004!" This report contains completely new forecast scenarios, expanded technical material, many added vendors, and updates on deployment activities since the previous work. It also includes new material on Wavelength Selective Switches, and many more figures, explaining the various types of approaches available for R-OADMS. This is a completely stand-alone report, containing all of the background material from the earlier report.

In preparing this update, the author spoke with executive representatives of the major vendors in this area and had input from major prospective users. This input was used to sharpen the focus of the forecasts from the previous report. that input was also used to improve the scenario that was the basis of our forecast.

While the telecom depression has eliminated (or at least dramatically postponed) a number of promised technologies and devices, the R-OADM is still clearly in the telecom future. It has the advantage of being an operations cost saver, and as such will endure when other enhancements may not. Indeed, the flexibility offered by the R-OADM is desire by all network operators. The only impediment is determining how to begin deployment.

The market forecasts included in the report are very comprehensive, including various types of R-OADMs, as well as forecasts for the major sub-systems and components of R-OADMs. Both US and Global forecasts are provided and units as well as market totals are included. All of theses forecasts are based on discussions with industry participants as well as on the author's extensive experience in the industry. A comprehensive model for development (a time schedule for significant events) of the R-OADM market is the prime driver of the forecasts. This model is explained in detail in the report.

This report covers all aspects of this rapidly developing product line. Included are:

  • Full description of the R-OADM and its relationship to other network elements.
  • Detailed analysis of the application possibilities for R-OADMs
  • Discussion of how the R-OADM will facilitate merging RBOC metro networks with IXC long-haul networks.
  • Discussion of all the technologies and architectures considered for implementing R-OADMs. (Switch based, Broadcast, and WSS)
  • Discussion and analysis of the market drivers for R-OADMs.
  • A detailed model for the market development of R-OADMs, with input from major carriers and vendors.
  • Detailed US and Global forecasts for R-OADM markets, both on a unit basis and a dollar basis.
  • Forecasts for US and Global components resulting from R-OADM development and deployment.
  • Sensitivity analysis for market forecasts.
  • Listing and discussion of the major vendors involved in R-OADMs both at the component and system level.
  • A compilation of which vendors are following each of the candidate architectures.
All sections are profusely illustrated with original drawings, tables, and charts.




    Table of Contents


    Table of Contents
